Motors

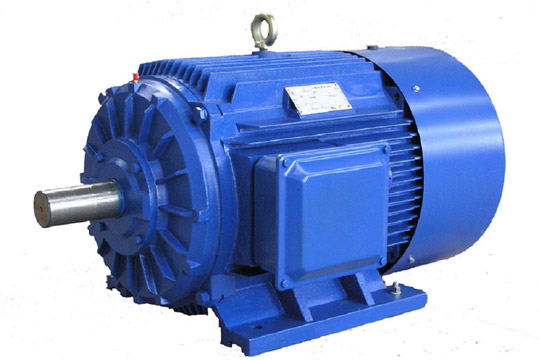

Y series electric motor

    Frame sizes: 80-355



    Rated power: 0.12-315kw



    Rated voltage: 380V ot any voltage between 220V - 760V/ as request



    Protection class:IP44, IP54, IP55



    Frequency: 50Hz, 60Hz or 50Hz/60Hz



    Cooling Method: IC141

Email: [email protected]



Phone: +86-18037487502(WhatsApp)

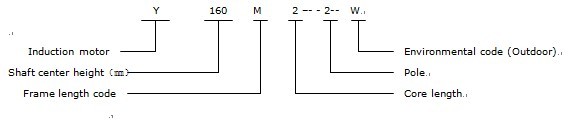

Product Detail | Parameters | Installation and Size | Type Designation
Product Detail

Y series three phase electric motor is designed in conformity with the relevant requirements of IEC and DIN42673 standards. It's totally enclosed and fan-cooling three-phase squirrel cage induction motors, having outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc.

Y series motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.

This series adopts Class B insulation, IP44 degree of protection and ICO 141 method of cooling.

Insulation class F and protection degree IP54, IP55 are also available

Rated voltage: 380V. rated frequency: 50Hz/60Hz. Y connection for motors output 3.0HP and downwards; △ connection for motors output 4.0HP and upwards.

There is usually one driving end for every motor, double driving ends is available for our customers special need.

We can also design special voltage, frequency as well as TH type humidity mould and other special type of motor.　

The normal position of the terminal-box is on the right-hand side when looking at the driving end of the motor, but can be also locate on the left-hand side if specified when ordering. The power cable can be led out through the outlet of the terminal box in four directions by turning the box at any one of the four directions with 900 interval. There is a sealing construction at the outlet.

B3: Frame with feet, end bracket without flange;

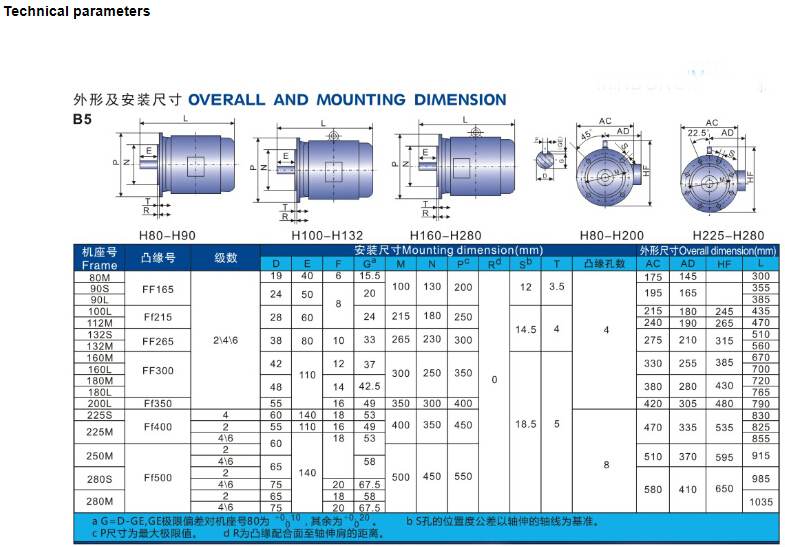

B5: Frame without feet, end bracket with flange whose diameter bigger than the frame;

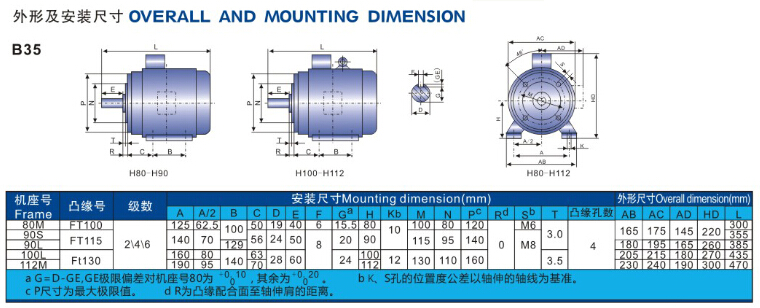

B35: Frame with feet, end bracket with flange whose diameter bigger than the frame.
B3: Frame with feet, end bracket without flange;
B5: Frame without feet, end bracket with flange whose diameter bigger than the frame;
B35: Frame with feet, end bracket with flange whose diameter bigger than the frame.

MOTOR FEATURES

- Utilise IP44 enclosures,IP54 on request
- Fixed feet
- Superior paint finish
- Motors made to heavy duty service factors
- Can be made with stainless steel shaft
- Motors made for continuos S1 duty
- Utilise Vacuum impregnated Class F insulation
- High performance and effciency

CUSTOMER BENEFITS

- Water dust and vermin resistant
- Quiet operation
- Electricity saving
- Easy intallation
- Corrosion resistant
- Safety and reliable
- Superior life
- Reliable in country,city or factory environments

Model Output full load 75% load 50% load Tstart/Tn Tst/In Tmax/Tn
Kw HP Current(A) speed(r/min) Eff(%) Power factor Eff(%) Power factor Eff(%) Power factor
380V 50Hz Synchronous Speed 3000r/min(2 poles)
Y-801-2 0.75 1 1.81 2830 75.0 0.84 73.8 0.79 72.0 0.68 2.2 6.5 2.3
Y-802-2 1.1 1.5 2.52 2830 77.0 0.86 76.5 0.81 74.0 0.71 2.2 7.0 2.3
Y-90S-2 1.5 2 3.44 2840 78.0 0.85 77.5 0.80 76.0 0.71 2.2 7.0 2.3
Y-90L-2 2.2 3 4.83 2840 80.5 0.86 79.7 0.82 77.6 0.73 2.2 7.0 2.3
Y-100L-2 3.0 4 6.39 2870 82.0 0.87 81.3 0.83 79.3 0.74 2.2 7.0 2.3
Y-112M-2 4.0 5.5 8.17 2890 85.5 0.87 84.8 0.83 82.8 0.73 2.2 7.0 2.3
Y-132S1-2 5.5 7.5 11.1 2900 85.5 0.88 84.9 0.86 83.0 0.79 2.0 7.0 2.3
Y-132S2-2 7.5 10 15.0 2900 86.2 0.88 85.5 0.86 84.0 0.79 2.0 7.0 2.3
Y-160M1-2 11 15 21.8 2930 87.2 0.88 86.5 0.86 85.0 0.79 2.0 7.0 2.3
Y-160M2-2 155 20 29.4 2930 88.2 0.88 87.6 0.85 86.4 0.80 2.0 7.0 2.3
Y-160L-2 18.5 25 35.5 2930 89.0 0.89 88.5 0.86 87.2 0.81 2.0 7.0 2.2
Y-180M-2 22 30 42.2 2940 89.0 0.89 88.1 0.87 87.0 0.81 2.0 7.0 2.2
Y-200L1-2 30 40 56.9 2950 90.0 0.89 88.7 0.86 87.2 0.79 2.0 7.0 2.2
Y-200L2-2 37 50 69.8 2950 90.5 0.89 89.7 0.86 88.0 0.80 2.0 7.0 2.2
Y-225M-2 45 60 83.9 2970 91.7 0.89 90.7 0.87 89.7 0.82 2.0 7.0 2.2
Y-250M-2 55 75 103 2970 91.5 0.89 90.6 0.86 89.5 0.82 2.0 7.0 2.2
Y-280S-2 75 100 139 2970 92.0 0.89 91.0 0.86 90.1 0.82 2.0 7.0 2.2
Y-280M-2 90 125 166 2970 92.5 0.89 91.4 0.86 90.9 0.84 2.0 7.0 2.2
Y-315S-2 110 150 203 2980 92.5 0.89 91.4 0.86 90.9 0.84 1.8 6.8 2.2
Y-315M-2 132 180 242 2980 93.0 0.89 91.8 0.87 90.8 0.84 1.8 6.8 2.2
Y-315L1-2 160 220 292 2980 93.5 0.89 91.9 0.87 91.0 0.84 1.8 6.8 2.2
Y-315L2-2 200 270 365 2980 93.5 0.89 92.3 0.87 91.2 0.84 1.8 6.8 2.2
Y-355M-2 250 340 444 2980 94.5 0.90 93.3 0.88 92.5 0.85 1.6 7.0 2.2
Y-355L-2 315 430 556 2980 95.0 0.90 93.9 0.88 92.8 0.85 1.6 7.1 2.2
380V 50Hz Synchronous Speed 1500r/min(4 poles)
Y-801-4 0.55 0.75 1.51 1390 73.0 0.76 71.5 0.66 70.0 0.52 2.4 6.0 2.3
Y-802-4 0.75 1 2.01 1390 74.5 0.76 73.0 0.67 74.5 0.56 2.3 6.0 2.3
Y-90S-4 1.1 1.5 2.75 1400 78.0 0.78 77.0 0.71 74.8 0.58 2.3 6.5 2.3
Y-90L-4 1.5 2 3.65 1400 79.0 0.79 77.5 0.72 76.0 0.61 2.3 6.5 2.3
Y-100L1-4 2.2 3 5.03 1430 81.0 0.82 80.3 0.74 78.2 0.61 2.3 7.0 2.3
Y-100L2-4 3.0 4 6.82 1430 82.5 0.81 81.6 0.75 80.0 0.63 2.2 7.0 2.3
Y-112M-4 4.0 5.5 8.77 1440 84.5 0.82 83.3 0.76 81.8 0.64 2.2 7.0 2.3
Y-132S-4 5.5 7.5 11.6 1440 85.5 0.84 84.2 0.78 82.9 0.68 2.2 7.0 2.3
Y-132M-4 7.5 10 15.4 1440 87.0 0.85 86.1 0.80 84.9 0.70 2.2 7.0 2.3
Y-160M-4 11 15 22.6 1460 88.0 0.84 87.4 0.79 85.1 0.68 2.2 7.0 2.3
Y-160L-4 15 20 30.3 1460 88.5 0.85 87.8 0.80 86.1 0.69 2.2 7.0 2.3
Y-180M-4 18.5 25 35.9 1470 91.0 0.86 89.9 0.81 88.0 0.71 2.2 7.0 2.2
Y-180L-4 22 30 42.5 1470 91.5 0.86 90.7 0.81 90.1 0.72 2.0 7.0 2.2
Y-200L-4 30 40 56.8 1470 92.2 0.87 91.3 0.82 90.5 0.73 2.0 7.0 2.2
Y-225S-4 37 50 70.4 1480 91.8 0.88 91.1 0.84 90.5 0.78 1.9 7.0 2.2
Y-225M-4 45 60 84.2 1480 92.3 0.88 91.6 0.85 90.6 0.79 1.9 7.0 2.2
Y-250M-4 55 75 103 1480 92.6 0.88 91.5 0.84 90.9 0.76 2.0 7.0 2.2
Y-280S-4 75 100 140 1480 92.7 0.88 91.7 0.84 91.0 0.77 1.9 7.0 2.2
Y-280M-4 90 125 164 1480 93.5 0.89 92.4 0.85 91.6 0.81 1.9 7.0 2.2
Y-315S-4 110 150 201 1480 93.5 0.89 92.5 0.86 91.6 0.82 1.8 6.8 2.2
Y-315M-4 132 180 240 1490 94.0 0.89 92.8 0.86 92.0 0.82 1.8 6.8 2.2
Y-315L1-4 160 220 289 1490 94.5 0.89 93.2 0.86 92.9 0.82 1.8 6.8 2.2
Y-315L2-4 200 270 361 1490 94.5 0.89 93.2 0.86 92.9 0.82 1.8 6.8 2.2
Y-335M-4 250 340 459 1485 94.7 0.87 93.6 0.87 93.0 0.83 1.6 6.8 2.2
Y-335L-4 315 430 576 1485 95.2 0.87 94.1 0.87 93.8 0.83 1.6 6.9 2.2
380V 50Hz Synchronous Speed 1000r/min(6 poles)
Y-801-6 0.37 0.5 1.2 900 70.5 0.68 68 0.59 64.7 0.43 2.0 5.5 2.2
Y-802-6 0.35 0.75 1.45 900 71.5 0.68 68 0.59 65.3 0.43 2.0 5.5 2.2
Y-90S-6 0.75 1 2.25 910 72.5 0.70 70.5 0.61 66.9 0.47 2.0 5.5 2.2
Y-90L-6 1.1 1.5 3.16 910 73.5 0.72 72.0 0.61 67.7 0.47 2.0 5.5 2.2
Y-100L-6 1.5 2 3.97 940 77.5 0.74 76.3 0.66 73.5 0.53 2.0 6.0 2.2
Y-112M-6 2.2 3 5.61 940 80.5 0.74 79.2 0.66 77.3 0.53 2.0 6.0 2.2
Y-132S-6 3.0 4 7.23 960 83.0 0.76 82.0 0.69 79.2 0.57 2.0 6.5 2.2
Y-132M1-6 4.0 5.5 9.40 960 84.0 0.77 83.1 0.70 79.9 0.58 2.0 6.5 2.2
Y-132M2-6 5.5 7.5 12.6 960 85.3 0.78 84.4 0.72 82.1 0.61 2.0 6.5 2.2
Y-160M-6 7.5 10 17.0 970 86.0 0.78 85.2 0.72 83.6 0.63 2.0 6.5 2.2
Y-160L-6 11 15 24.6 970 87.0 0.78 86.6 0.72 85.4 0.62 2.0 6.5 2.2
Y-180L-6 15 20 31.4 970 89.5 0.81 88.5 0.75 86.8 0.63 1.8 6.5 2.0
Y-200L1-6 18.5 25 37.7 970 89.8 0.83 88.7 0.77 87.5 0.69 1.8 6.5 2.0
Y-200L2-6 22 30 44.6 970 90.2 0.83 89.3 0.75 87.7 0.65 1.8 6.5 2.0
Y-225M-6 30 40 59.5 980 90.2 0.85 89.6 0.80 88.6 0.71 1.7 6.5 2.0
Y-250M-6 37 50 72 980 90.8 0.86 90.4 0.81 89.3 0.73 1.8 6.5 2.0
Y-280S-6 45 60 85.4 980 92.0 0.87 91.2 0.82 89.7 0.75 1.8 6.5 2.0
Y-280M-6 55 75 104 980 92.0 0.87 91.5 0.81 90.2 0.74 1.8 6.5 2.0
Y-315S-6 75 100 141 990 92.8 0.87 92.3 0.82 90.8 0.74 1.6 6.5 2.0
Y-315M-6 90 125 169 990 93.2 0.87 92.8 0.83 91.2 0.76 1.6 6.5 2.0
Y-315L1-6 110 150 206 990 93.5 0.87 92.9 0.83 91.8 0.76 1.6 6.5 2.0
Y-315L2-6 132 180 246 990 93.8 0.87 93.1 0.83 92.0 0.76 1.6 6.5 2.0
Y-335M1-6 160 220 300 990 94.1 0.86 93.4 0.84 92.6 0.77 1.9 6.7 2.0
Y-335M2-6 200 270 374 990 94.3 0.86 93.6 0.84 92.8 0.77 1.9 6.7 2.0
Y-335L-6 250 340 465 990 94.7 0.86 94.0 0.84 93.0 0.77 1.9 6.7 2.0
380V 50Hz Synchronous Speed 750r/min(8 poles)
Y-132S-8 2.2 3 5.85 710 80.5 0.71 79.7 0.62 77.8 0.49 2.0 5.5 2.0
Y-132M-8 3.0 4 7.72 710 82.0 0.72 81.2 0.64 78.5 0.51 2.0 5.5 2.0
Y-160M1-8 4.0 5.5 9.91 720 84.0 0.73 83.6 0.64 81.9 0.53 2.0 6.0 2.0
Y-160M2-8 5.5 7.5 13.3 720 85.0 0.74 84.4 0.66 82.3 0.54 2.0 6.0 2.0
Y-160L-8 7.5 10 17.7 720 86.0 0.75 85.1 0.68 83.2 0.57 2.0 5.5 2.0
Y-180L-8 11 15 24.8 730 87.5 0.77 86.9 0.70 85.1 0.57 1.7 6.0 2.0
Y-200L-8 15 20 34.1 730 88.0 0.76 87.3 0.71 86.4 0.61 1.8 6.0 2.0
Y-225S-8 18.5 25 41.3 730 89.5 0.76 88.5 0.70 87.3 0.61 1.7 6.0 2.0
Y-225M-8 22 30 47.6 730 90.0 0.78 88.8 0.71 87.7 0.62 1.8 6.0 2.0
Y-250M-8 30 40 63.0 740 90.5 0.80 90.0 0.72 88.6 0.62 1.8 6.0 2.0
Y-280S-8 37 50 78.2 740 91.0 0.79 90.2 0.72 89.0 0.62 1.8 6.0 2.0
Y-280M-8 45 60 93.2 740 91.7 0.80 91.1 0.74 89.8 0.64 1.8 6.0 2.0
Y-315S-8 55 75 114 740 92.0 0.80 91.5 0.74 90.1 0.64 1.6 6.5 2.0
Y-315M-8 75 100 152 740 92.5 0.81 92.0 0.76 90.9 0.68 1.6 6.5 2.0
Y-315L1-8 90 125 179 740 93.0 0.82 92.6 0.77 91.7 0.69 1.6 6.5 2.0
Y-315L2-8 110 150 218 740 93.3 0.82 92.8 0.78 91.8 0.70 1.6 6.3 2.0
Y-335M1-8 132 180 260 740 93.8 0.81 93.3 0.79 92.3 0.71 1.9 6.3 2.0
Y-335M2-8 160 220 314 740 94.0 0.81 93.5 0.79 92.5 0.71 1.9 6.3 2.0
Y-335L-8 200 270 392 740 94.3 0.81 93.8 0.79 92.8 0.71 1.9 6.3 2.0
